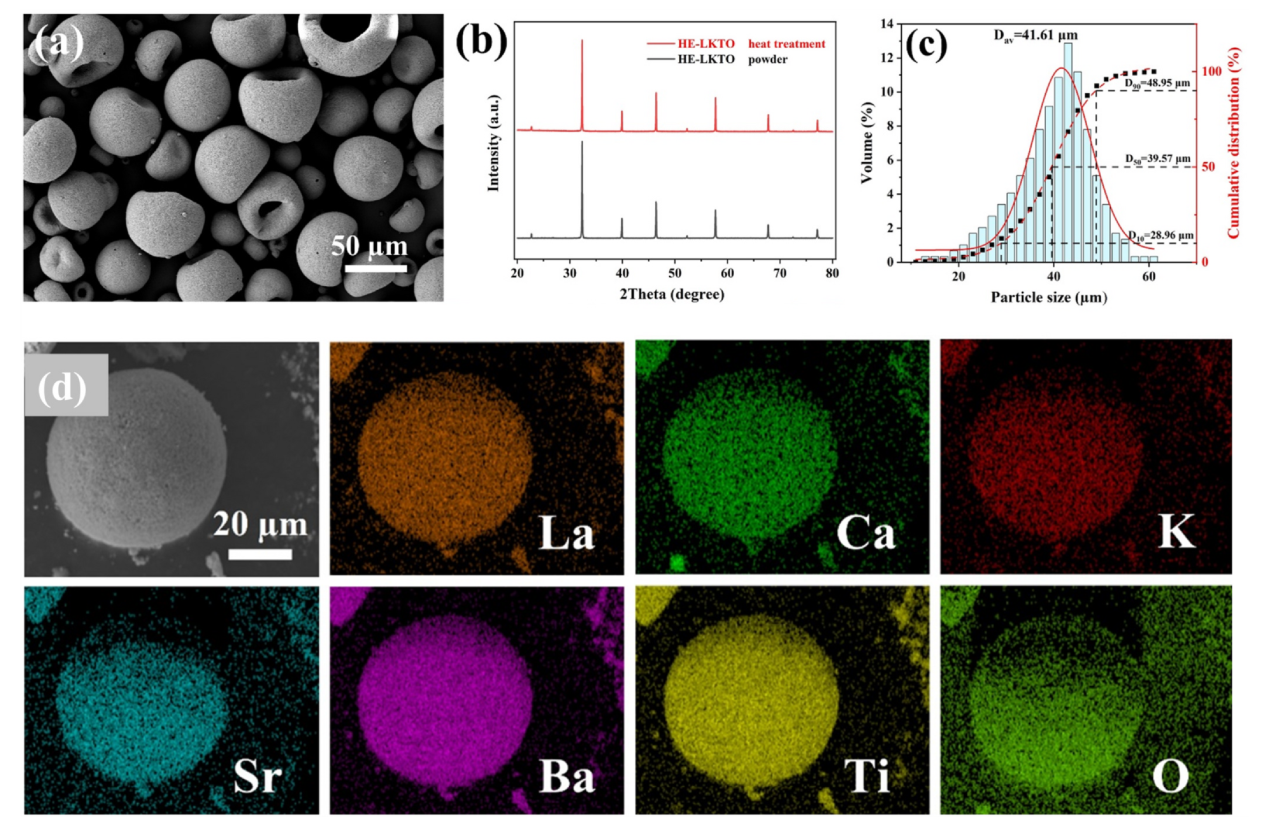

High-purity (> 99.5 %) powders (La₂O₃, K₂CO₃, CaO, SrO, BaO and TiO₂ from Shanghai Macklin Biochemical Co., Ltd., China.) were employed as starting materials and weighed according to the stoichiometric ratio. The blended powders were suspended in anhydrous ethanol and subjected to attrition milling for 12 h at a speed of 300 r/min, employing zirconia balls as the grinding media. After mixing, the powder suspension was processed by rotary evaporation to yield a uniformly dry powders. Following calcination at 900 ℃ for 3 h, the resulting powders were classified through a 200-mesh sieve. The powders were subjected to pressure-free sintering at 1400 ℃ for 10 h, under conditions of a heating rate of 5 ℃/min. HE-LKTO powders were blended with an aqueous solution containing 4.5 wt% polyvinyl alcohol (PVA) and 1 wt% dispersant at a weight ratio of 6:4. The mixture was then transferred into a grinding tank and subjected to ball milling for 5 h to obtain a homogenized slurry. The slurry was sprayed in a spray granulation device (YC-019, Shanghai Ya Cheng Instrument Equipment Co., Ltd., China) with an atomizing pressure of 0.15 MPa and a inlet temperature of 240 ℃ to produce spherical powders. The powder was sintered at 650 ℃ and 1050 ℃ (3 h each) to both remove organic additives and improve its cohesive strength. Fig. 1 shows the microstructure and XRD pattern of HE-LKTO spheroidized powders after heat treatment. After heat treatment, the HE-LKTO granular powders still maintain excellent surface smoothness and intact apple like morphology (as shown in Fig. 1(a)). This unique internal concave structure is formed by the direct evaporation of solvent from the interior of the droplet. During the particle transformation process in droplets, the evaporation rate is effectively suppressed by forming a flexible shell with extremely low permeability [31]. This spray granulating powder has excellent physical properties, its fluidity is 60 s/50 g, and its apparent density is 1.73 g/cm³. By comparing the XRD pattern (Fig. 1(b)), it was found that the heat treatment did not change the crystal structure, while the EDS mapping (Fig. 1(d)) further confirmed the uniform distribution of the metal composition. The particle size distribution of these granular powders is suitable for APS, as evidenced by the data in Fig. 1(c): D₅₀ is 39.57 μm, D₉₀ is 48.95 μm, and the average diameter is 41.61 μm, all of which are within the recommended range of 30-80 μm [27]. These results indicate that spheroidized powders have extremely high structural stability under high temperature conditions and meet the basic requirements of APS for raw materials.

Prior to spraying, the circular nickel-based alloy substrate (diameter: 25 mm, thickness: 2 mm) surface was roughened to a roughness exceeding 5 µm using a box-type sandblasting machine (HC-9080, Shijiazhuang Hongchen Machinery Co. Ltd., China). The substrate was subsequently subjected to ultrasonic cleaning in acetone for 5 min for the purpose of eliminating residual particulate contaminants from the surface. In order to further improve the deposition efficiency of the coating, a metal bonding transition layer (NiCrCoAlY) with a thickness of about 80 μm was prepared on the substrate surface using APS in advance. The HE-LKTO coating was finally sprayed at powers of 30 kW, 33 kW, and 36 kW, named HE-LKTO-1, HE-LKTO-2, and HE-LKTO-3 respectively, with three sets of replicate samples prepared for each spraying power. The detailed parameters are shown in Table 1.

The phase structure of the HE-LKTO coatings were determined by X-ray diffractometry (XRD, NSW, The Netherlands). The microstructural morphology and elemental distribution of the coatings were characterized using a scanning electron microscope (SEM, NOVANanoSEM 230 FEI, USA) equipped with an energy-dispersive spectroscopy (EDS) system. The surface roughness of the coatings were observed using atomic force microscopy (AFM, Bruker Dimension Icon, Germany).

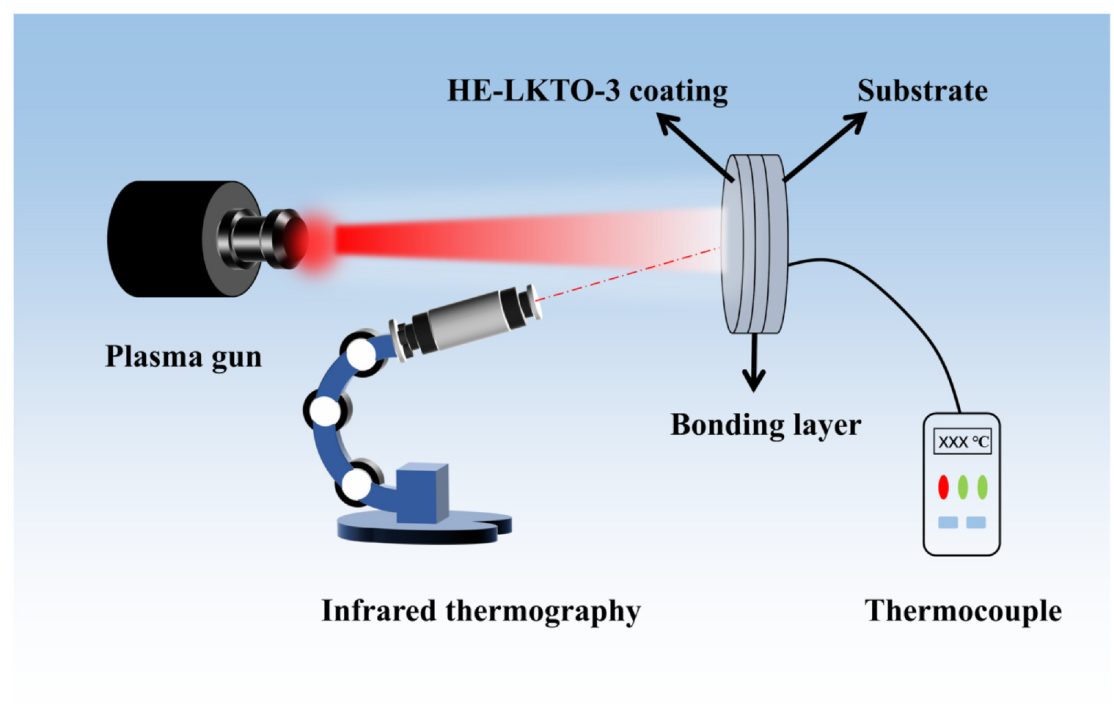

The thermal insulation performance and resistance to extreme heat flow erosion of the HE-LKTO coating were evaluated using a high-temperature plasma flame flow thermal shock test platform independently built in the laboratory. The coating sample (ϕ 25 mm × 3 mm) was mounted in a graphite fixture on the experimental platform. The testing distance was set at 60 mm, and the front surface of the sample was heated to the target temperature by adjusting the process parameters of the APS system. During the testing process, the surface and backside temperatures of the HE-LKTO coating were monitored in real-time using infrared thermography (HA384) and thermocouples, respectively. The coating surface was heated to target temperatures of 1000 ℃, 1200 ℃, 1400 ℃, and 1600 ℃, respectively, and held at each temperature for 300 s before the plasma torch was retracted, marking the end of the evaluation cycle. A schematic of the high-temperature plasma flame flow thermal shock test platform is shown in Fig. 2. The mass of the HE-LKTO coatings was measured using an analytical balance (Zhuojing Corp., BSM-220.4) before and after thermal shock testing to determine the coating mass loss. The reported values are calculated based on three independent repeated samples at each temperature.

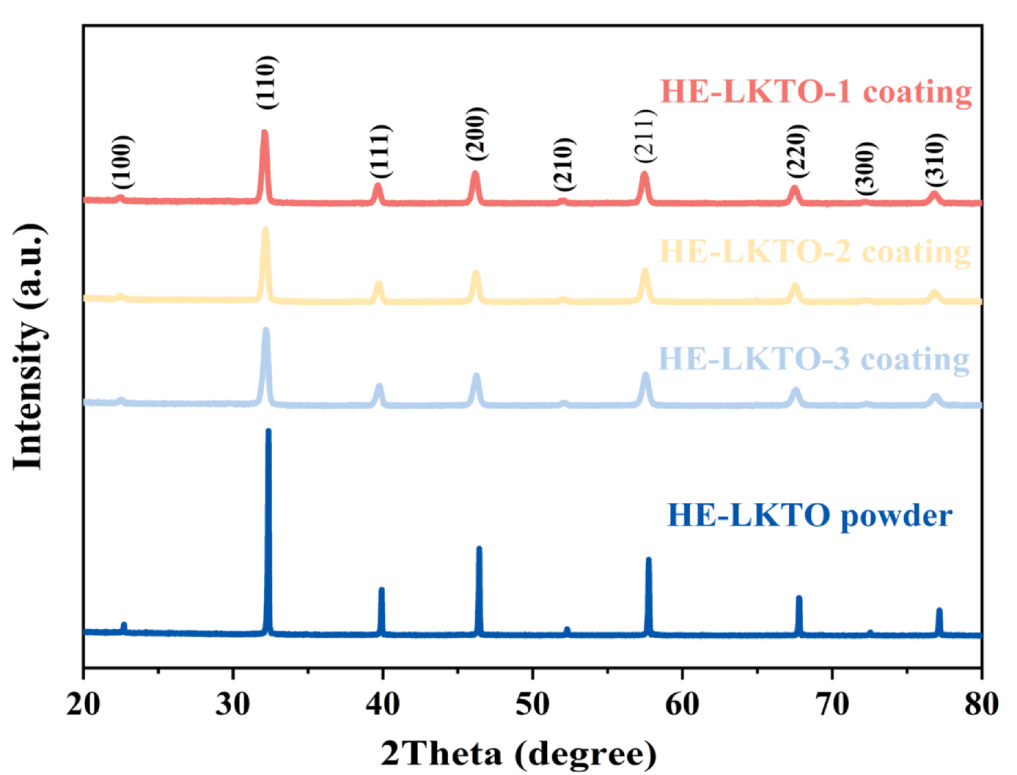

The phase composition of the HE-LKTO coatings were examined by XRD to confirm that the as-sprayed powders did not undergo phase transition during the APS process. As shown in Fig. 3, the HE-LKTO coatings deposited at different power levels all exhibit diffraction peaks matching those of the sprayed powder, confirming a perovskite structure [22]. A comparison of the XRD patterns reveals a significant reduction in diffraction peak intensity for the HE-LKTO coatings compared to the as-sprayed powders. This reduction can be attributed to the low crystallinity resulting from the short processing time and rapid solidification characteristic of the APS process [32].

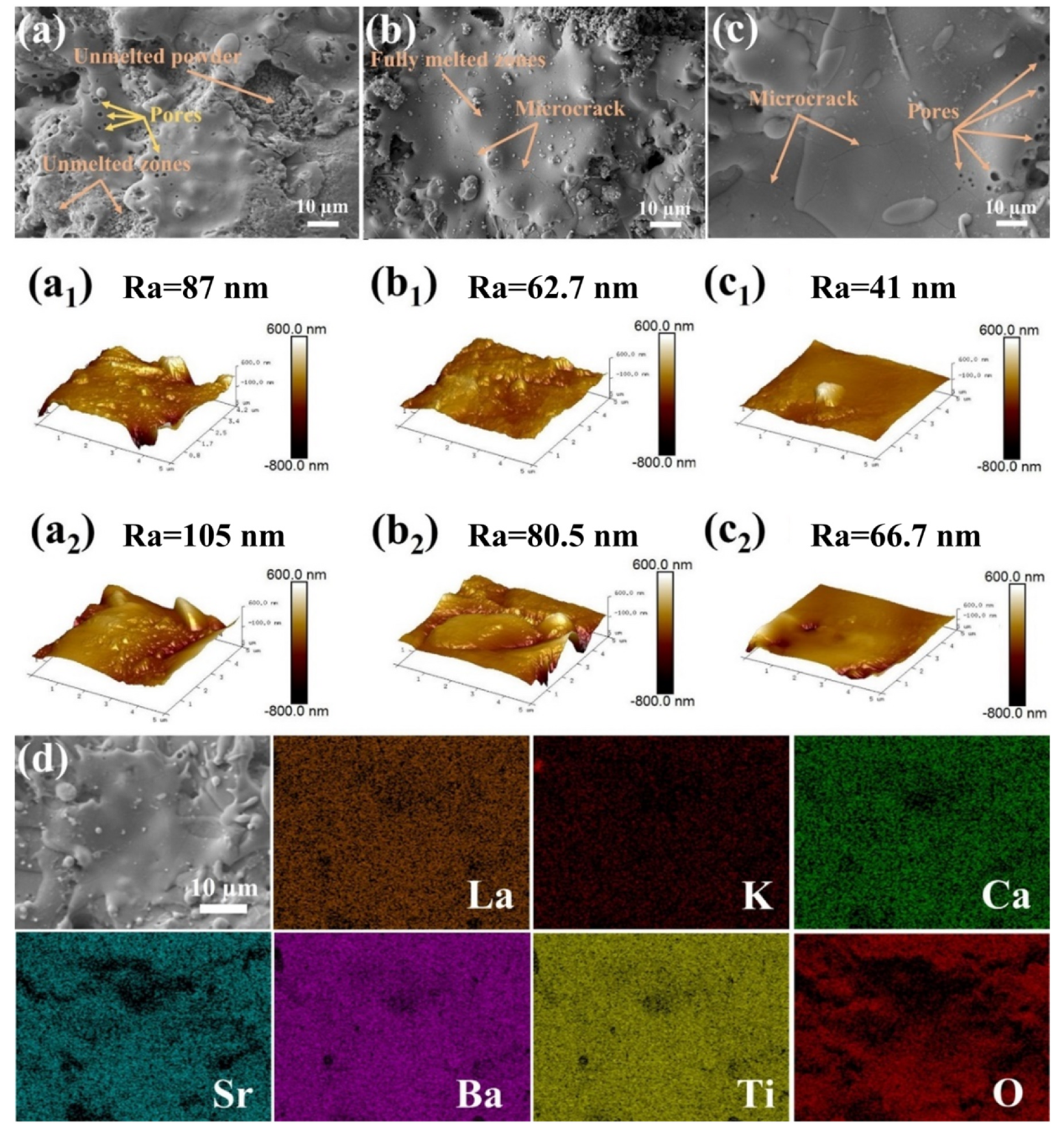

To further investigate the microstructures of the HE-LKTO coatings under different powers, SEM, EDS, and AFM analyses were utilized. As shown in Fig. 4(a), when the spraying power is 30 kW (HE-LKTO-1 coating), there are many irregular particles and some incompletely melted spherical particles on the surface of coating. This occurred because the low power only melted the spherical powder into a liquid state on the outside, while the core remained an unmelted solid particle. When these incompletely melted spherical powders collide with the substrate at a certain speed, the internal unmelted particles may break and form many small particles. Consistent with this analysis, the AFM images (Fig. 4(a1) - (a2)) indicated a rough and inhomogeneous surface for the HE-LKTO-1 coating. With the increase of spraying power to 33 kW (HE-LKTO-2 coating), as shown in Fig. 4(b), the melting degree of coating particles has been greatly improved, and the coating surface is relatively flat. The increase in spraying power led to a higher particle heating temperature in the plasma flame, thereby promoting particle melting. Nevertheless, some partially melted particles, along with a few microcracks and pores, were still present. To further enhance particle melting and explore the effect of power on coating microstructure, the spray power was increased to 36 kW (HE-LKTO-3 coating). As shown in Fig. 4(c), compared with the coating prepared at low power, the HE-LKTO-3 coating has a smoother, flatter, and denser surface (as shown in Fig. 4(c1) - (c2)). It should be noted that in order to better observe the micro-scale smoothness within the well-formed sputtered area of the coating, the AFM measurements were conducted on a local region of 5 × 5 μm. Therefore, the obtained roughness value cannot represent the overall surface roughness of the coating, but this does not affect the observation of the roughness variation trend. Furthermore, the EDS mapping in Fig. 4(d) reveals that the HE-LKTO-3 coating prepared at 36 kW exhibits a homogeneous distribution of all elements, with no detectable segregation.

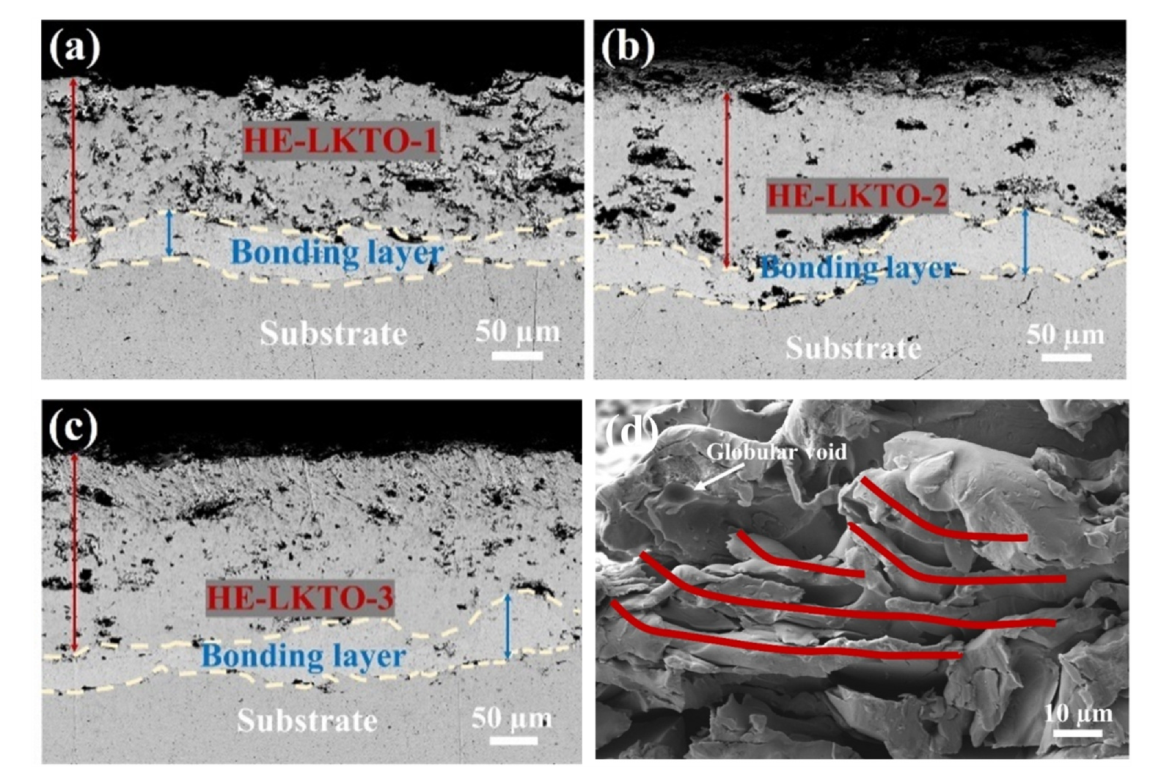

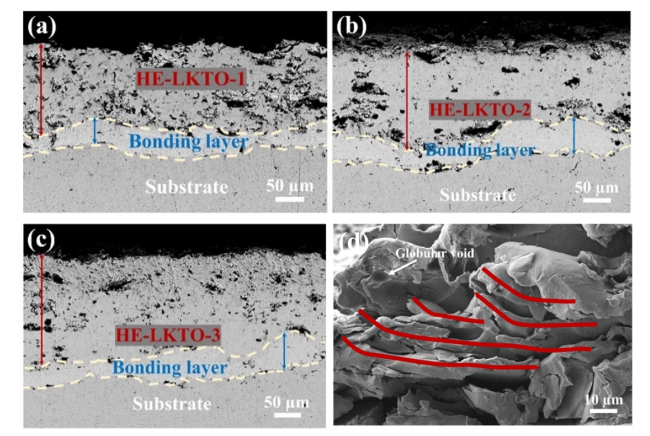

It can be clearly seen from Fig. 5 that the cross-sectional thickness and morphology of HE-LKTO coating vary with different spray powers. All cross-sections exhibit a distinct three-layer structure, with the average thickness of HE-LKTO-1, HE-LKTO-2, and HE-LKTO-3 coatings being 173.42 μm, 186.51 μm, and 216.23 μm, respectively, while the corresponding average thickness of the bonding layer is 85.76 μm, 84.85 μm, and 83.12 μm, respectively. It can be concluded that the coating thickness significantly increases with the increase of spraying power, while the bonding layer thickness remains basically unchanged. The increase in thickness is attributed to the more complete melting of high-entropy titanate particles at higher power, which improves deposition efficiency and leads to the formation of more material deposits on the substrate [33]. As shown in Fig. 5(a), the HE-LKTO-1 coating deposited at a power of 30 kW exhibits a porous and loose structure due to its low power. When the power is low, it can lead to insufficient spreading of the coating when the molten particles collide with the substrate, resulting in the formation of pores during the cooling shrinkage process and adversely affecting the bonding strength of the coating [34]. As the power gradually increased to 33 kW (HE-LKTO-2) and then to 36 kW (HE-LKTO-3), the pores observed in the cross-section of the coating gradually decreased. According to ImageJ software analysis, the measured porosity of HE-LKTO coating is 15.38 %, 9.89 %, and 6.21 %, corresponding to three different spraying powers (30 kW, 33 kW, and 36 kW). In summary, HE-LKTO-3 coating has a high-quality microstructure with a few pore defects, which meets the key application requirements as a TPC. As shown in Fig. 5(d), the fracture surface of HE-LKTO-3 coating exhibits a typical layered structure. In addition, a small number of pores and globular voids can be observed in the microstructure, which is a characteristic of the APS manufacturing process itself [35]. This occurs as the plasma-melted droplets travel at high speed to the metal substrate, enveloping some surrounding air. The subsequent rapid solidification of these droplets on the substrate prevents the timely escape of the trapped air, thereby leading to the formation of pores and voids [36], [37]. In fact, these defects are beneficial to some extent, as they help relieve stress during thermal cycling and thereby improve the thermal protection performance. Huang et al. [38] employed a combination of the quartet structure generation set methods and Monte Carlo simulation methods to develop a thermal analysis model for TPCs. This study found that microcracks reduce the thermal conductivity of coatings with different structures, thereby improving their thermal insulation performance to some extent. Therefore, the HE-LKTO-3 coating achieves a balanced performance: its low porosity ensures adequate bonding strength and erosion resistance, while its inherent lamellar structure and the presence of limited microcracks still provide essential pathways for stress relief and thermal insulation.

Based on the aforementioned analysis, the HE-LKTO-3 coating exhibits the most optimal microstructure, the lowest porosity, and the most compact structure. Therefore, thermal shock tests were conducted specifically on the HE-LKTO-3 coating. In this study, a plasma spraying flame was selected as the high-temperature heat source.

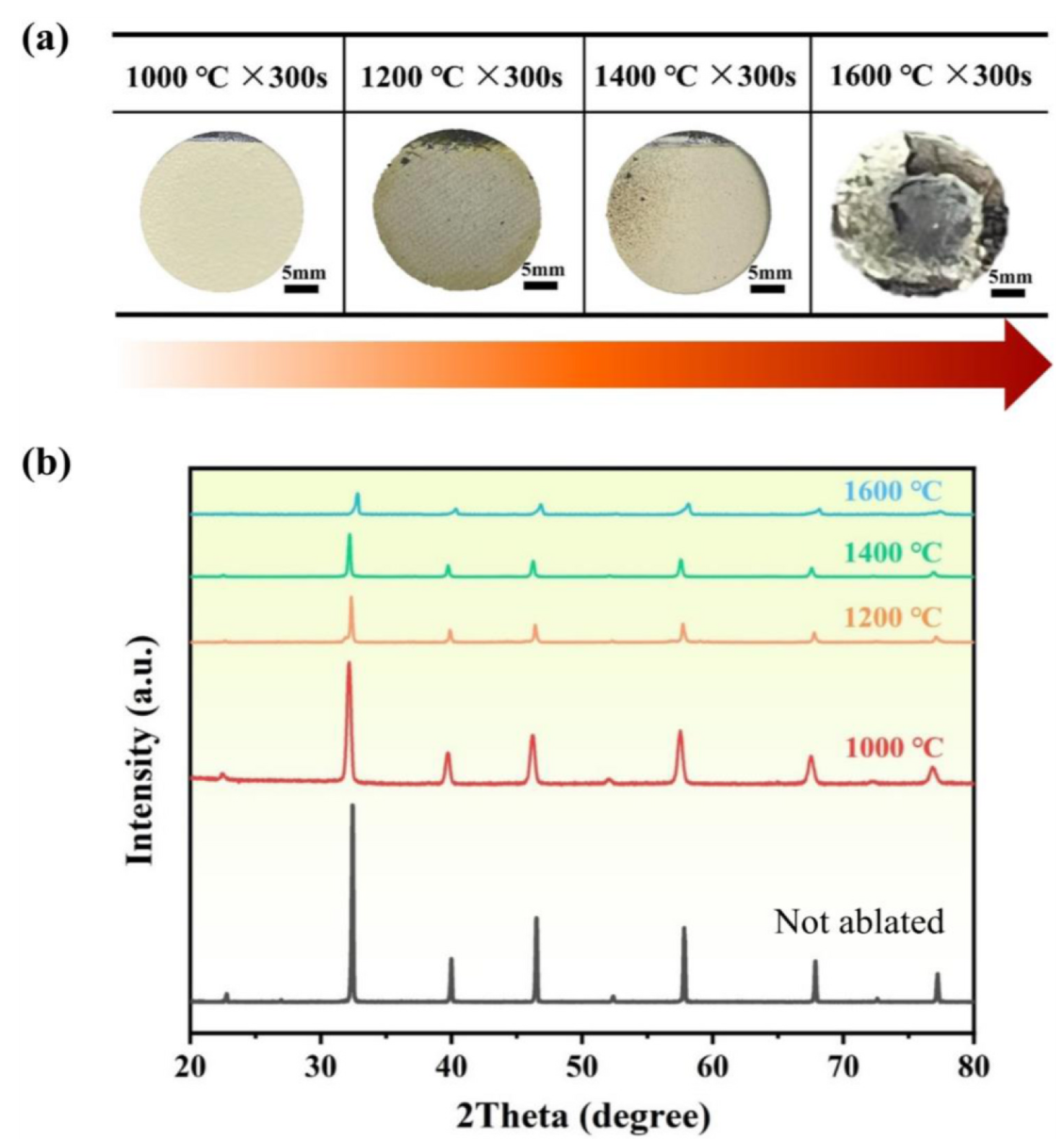

Compared with traditional thermal shock testing sources such as butane flames, plasma flames have higher center temperatures and stronger impact forces, providing key reference value for accurately evaluating the performance of coatings under actual usage conditions. As shown in Fig. 6(a), after 300 s of thermal shock ablation at 1000 ℃, the HE-LKTO-3 coating showed no signs of thermal shock damage, indicating that the coating maintained its integrity and structural stability at that temperature. After the ablation temperature was raised to 1200 ℃ and lasted for 300 s, the HE-LKTO-3 coating did not show significant thermal shock damage, only a small amount of ablation marks were observed, and the overall coating remained highly intact. When the ablation temperature further increased to 1400 ℃, a large number of dark spots (ablation points) began to appear in the ablation area at the center of the coating surface, although the entire coating still maintained a relatively high flatness. At the ablation temperature of 1600 ℃, a large number of ablation points initially appeared on the surface of the coating, and their range gradually expanded. After the ablation operation lasted for 180 s, some areas of the coating began to peel off. Subsequently, the substrate of the central ablation area was rapidly damaged, leading to melting and collapse, ultimately resulting in sample failure. The XRD pattern (Fig. 6(b)) shows that the phase composition of the surface ablation area is consistent with that of the HE-LKTO-3 coating, and no secondary or impurity phases were formed during the high-temperature plasma flame ablation process. This excellent phase stability is supported by the fundamental “high-entropy effects”, specifically the high configurational entropy and severe lattice distortion. The significantly increased configurational entropy of multi-component systems effectively reduces Gibbs free energy, making it thermodynamically more favorable for the formation and stabilization of single-phase solid solutions [39], [40]. Meanwhile, significant atomic size differences between constituent elements can lead to severe lattice deformation, resulting in significant energy barriers that impede atomic diffusion and phase separation [41], [42], [43]. It is this synergistic effect that enables HE-LKTO-3 coating to maintain excellent high-temperature stability even after undergoing thermal ablation processes. Additionally, as the plasma jet generated by the APS system is a high-velocity gas flow containing ionized species, it exerts an impact on the coating surface. Therefore, the mass loss of the HE-LKTO coatings before and after thermal shock are listed in Table 2. As can be seen from Table 2, the mass loss of the coating gradually increases with the progressive rise of the thermal exposure temperature. This is due to the fact that at higher temperatures, the thermal expansion mismatch between the coating and the substrate becomes more pronounced, generating greater interfacial stress and accelerating crack initiation and propagation. Simultaneously, high temperatures soften the coating surface, thereby reducing its resistance to the high-velocity impact and shear forces imposed by the plasma jet. The aforementioned factors collectively degrade the coating’s cohesion and erosion resistance, leading to increased mass loss under higher thermal loads.

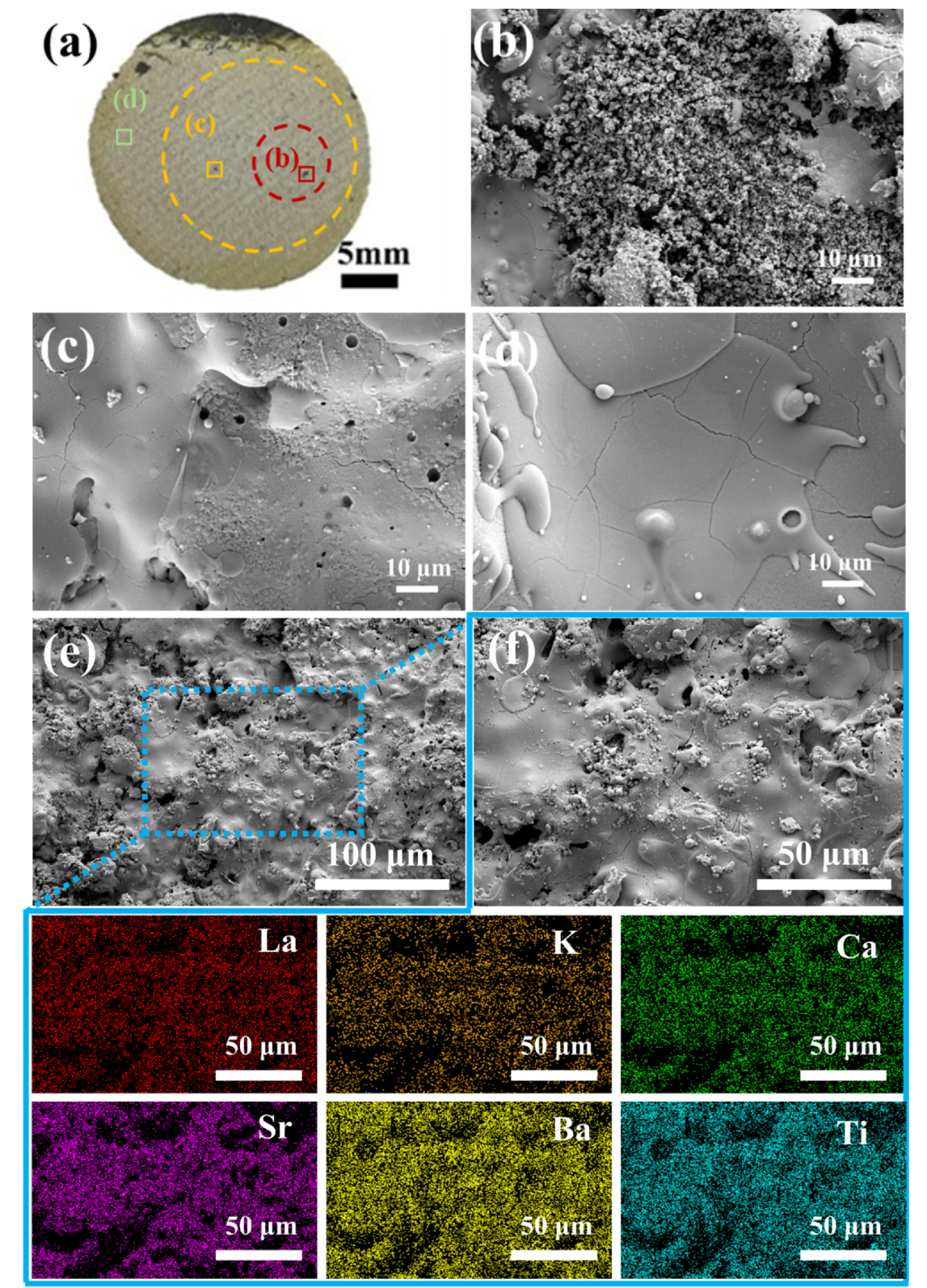

The microstructures of the ablated coatings were analyzed using SEM and EDS to further link it with thermal protection performance. The study on microstructural characteristics mainly focused on the analysis of coatings exposed under conditions of 1200 ℃, 1400 ℃, and 1600 ℃. The reason for choosing this group of samples is that all the coatings subjected to impact treatment have the same phase composition, and the macroscopic morphology of the coating at 1000 ℃ has not undergone any changes (as shown in Fig. 6(a)). Fig. 7 shows the surface morphology of HE-LKTO-3 coating after exposure to a plasma jet at 1200 ℃. In the central ablation area (as shown in Fig. 7(b)), a large number of pits and particle aggregates can be observed, which is attributed to the continuous erosion effect under high-temperature plasma flow. The degree of ablation in the transitional ablation zone (as shown in Fig. 7(c)) exhibits a significant gradient change: the area not directly exposed to the jet maintains its original shape, while the area directly exposed to thermal radiation undergoes ablation. This leads to the formation of micropores and cracks. In the peripheral ablation area (as shown in Fig. 7(d)), the coating surface remained largely unchanged because the plasma jet with Gaussian energy distribution significantly reduced the heat flux density at the edge, resulting in only a slight ablation effect [44], [45]. During the testing process, thermal stress was generated due to the steep temperature gradient on the coating surface. When the plasma jet stops, rapid surface cooling leads to local heat accumulation, resulting in stress concentration and the formation of large areas of microcracks [9]. It is worth noting that crack propagation is an effective heat dissipation pathway, which alleviates stress gradients through the distribution of heat flux [38]. EDS mapping was conducted in the transition zone between central ablation and peripheral regions to analyze elemental redistribution across the thermal gradient. As shown in Fig. 7(f), after plasma jet testing at 1200 ℃, the A-site metal elements in the HE-LKTO-3 coating maintained a highly uniform distribution, and no element separation phenomenon was detected.

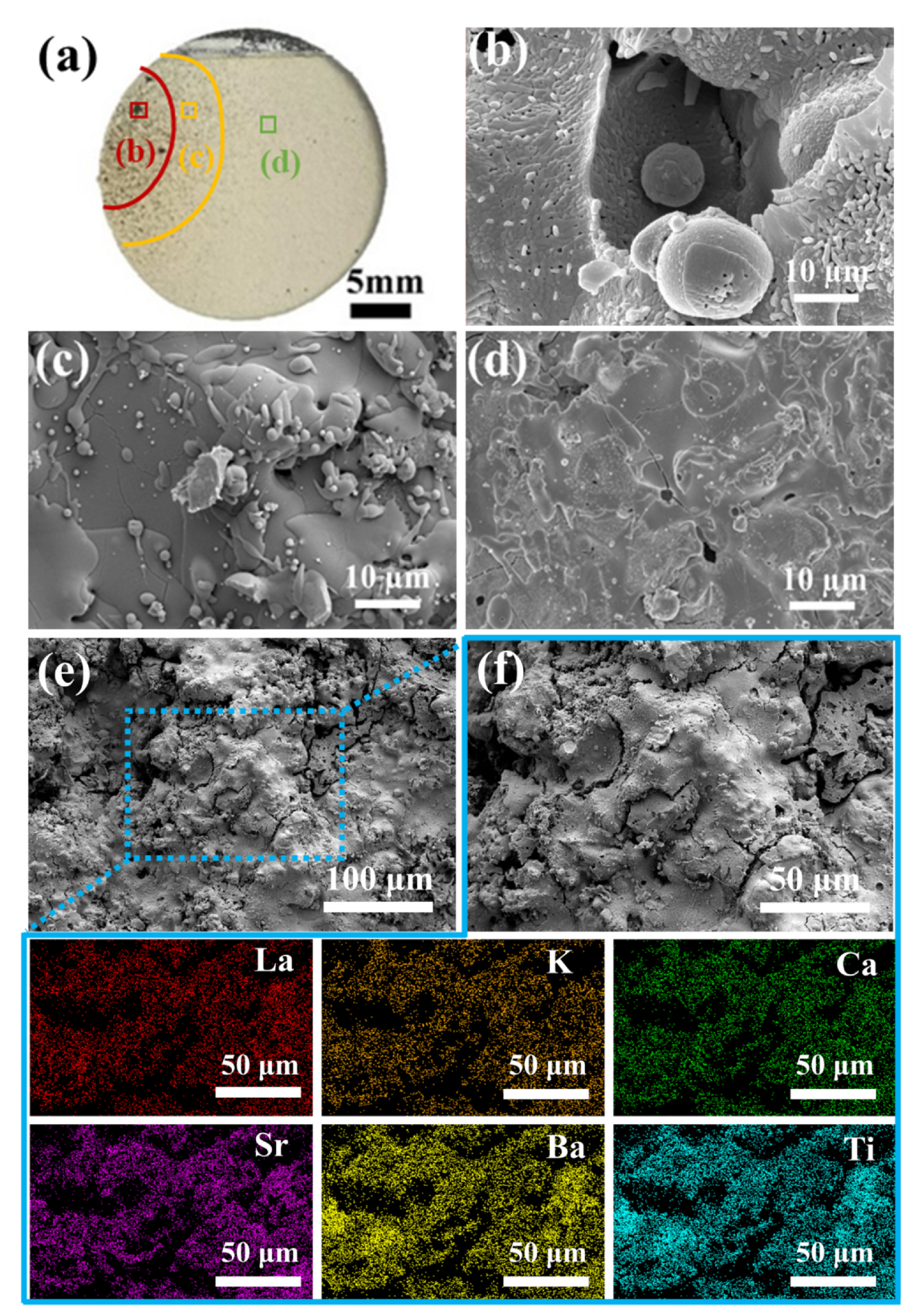

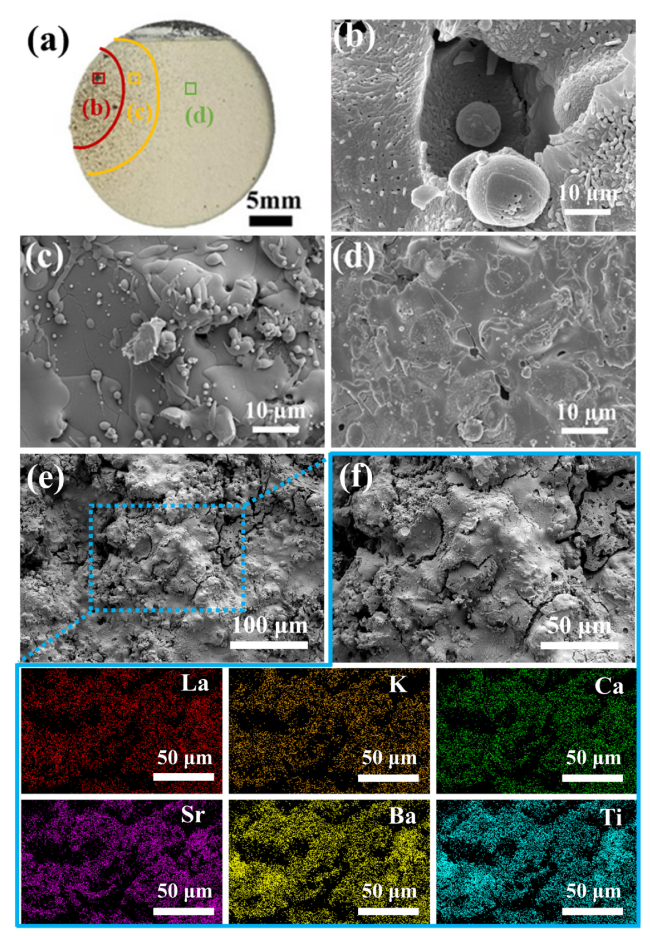

Fig. 8 shows the surface morphology of HE-LKTO-3 coating after exposure to 1400 ℃ plasma jet. As shown in Fig. 8(b), the central ablation area is filled with holes and deep pits, which are typical features of thermal damage. The formation of these deep pits is due to the exposure of the area to higher temperatures and stronger plasma flow impacts. In addition, due to the highly concentrated heat flux, the cooling process of the material is relatively slow, providing sufficient time for grain growth [18]. Therefore, smaller spherical grains gradually thicken, forming tightly arranged grain aggregates. In the transitional ablation zone (Fig. 8(c)), the surface remains relatively flat compared to the central ablation zone, and the ablation effect is weaker. However, the peripheral ablation area (Fig. 8(d)) did not show significant structural changes. This spatial difference arises from the Gaussian energy distribution of the plasma jets, in which the heat flux at the edges drops off sharply, resulting in inadequate ablation. EDS mapping was conducted in the transition zone between central ablation and peripheral regions to analyze elemental redistribution across the thermal gradient. As shown in Fig. 8(f), the HE-LKTO-3 coating maintained uniform distribution of its five A-site metal elements after exposure to a plasma jet at 1400 ℃, and there was no separation phenomenon, highlighting its extremely high thermal stability.

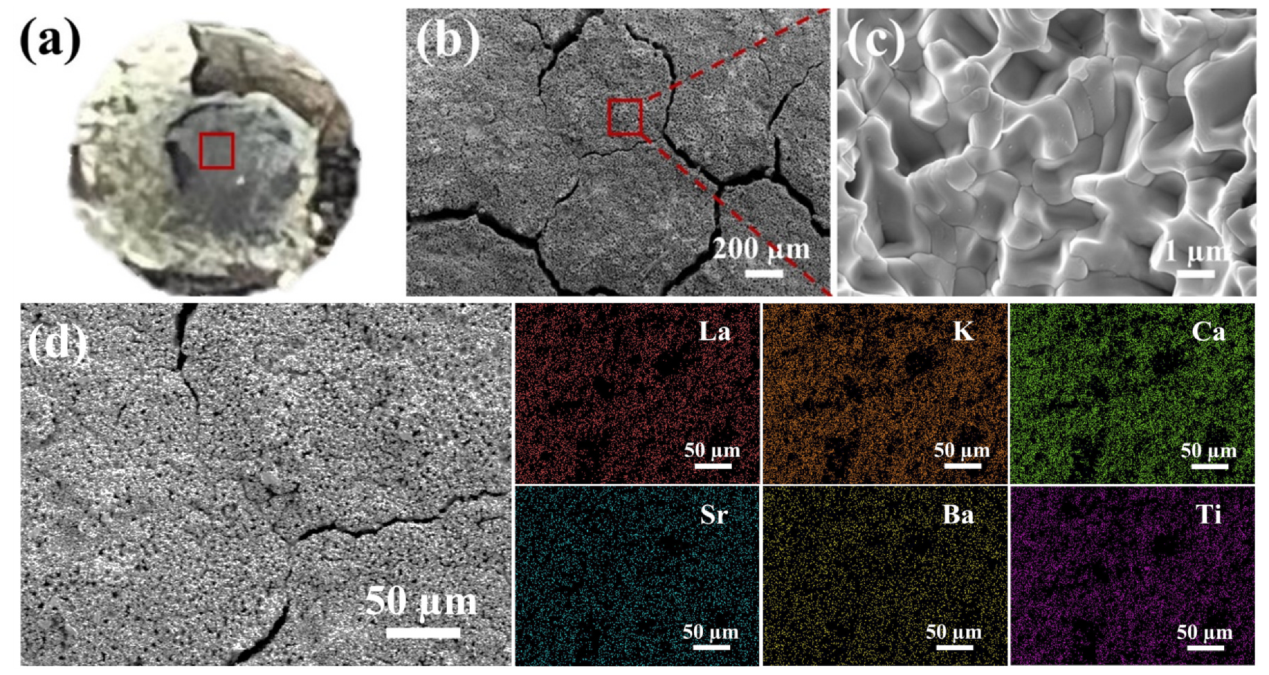

Fig. 9 reveals the ablation failure characteristics of the HE-LKTO-3 coating after extreme thermal shock under a 1600 ℃ plasma jet for 300 s. The macroscopic morphology (Fig. 9(a)) indicates severe overheating in the central ablated area, exhibiting localized coating spallation. As depicted in Fig. 9(b), the central ablation zone exhibits a prominent network of wide cracks, which primarily originated from the thermal stress generated during the shock process [46]. A higher-magnification view of the central region (Fig. 9(c)) reveals that, compared to the effects observed at 1400 ℃, the 1600 ℃ thermal load triggered a more intense remelting-solidification cycle. The subsequently rapidly solidified melt developed a new, tightly interlocked and rugged microstructure.

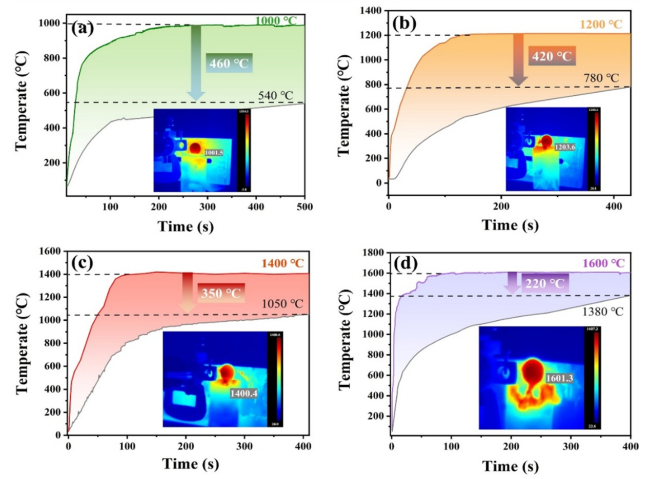

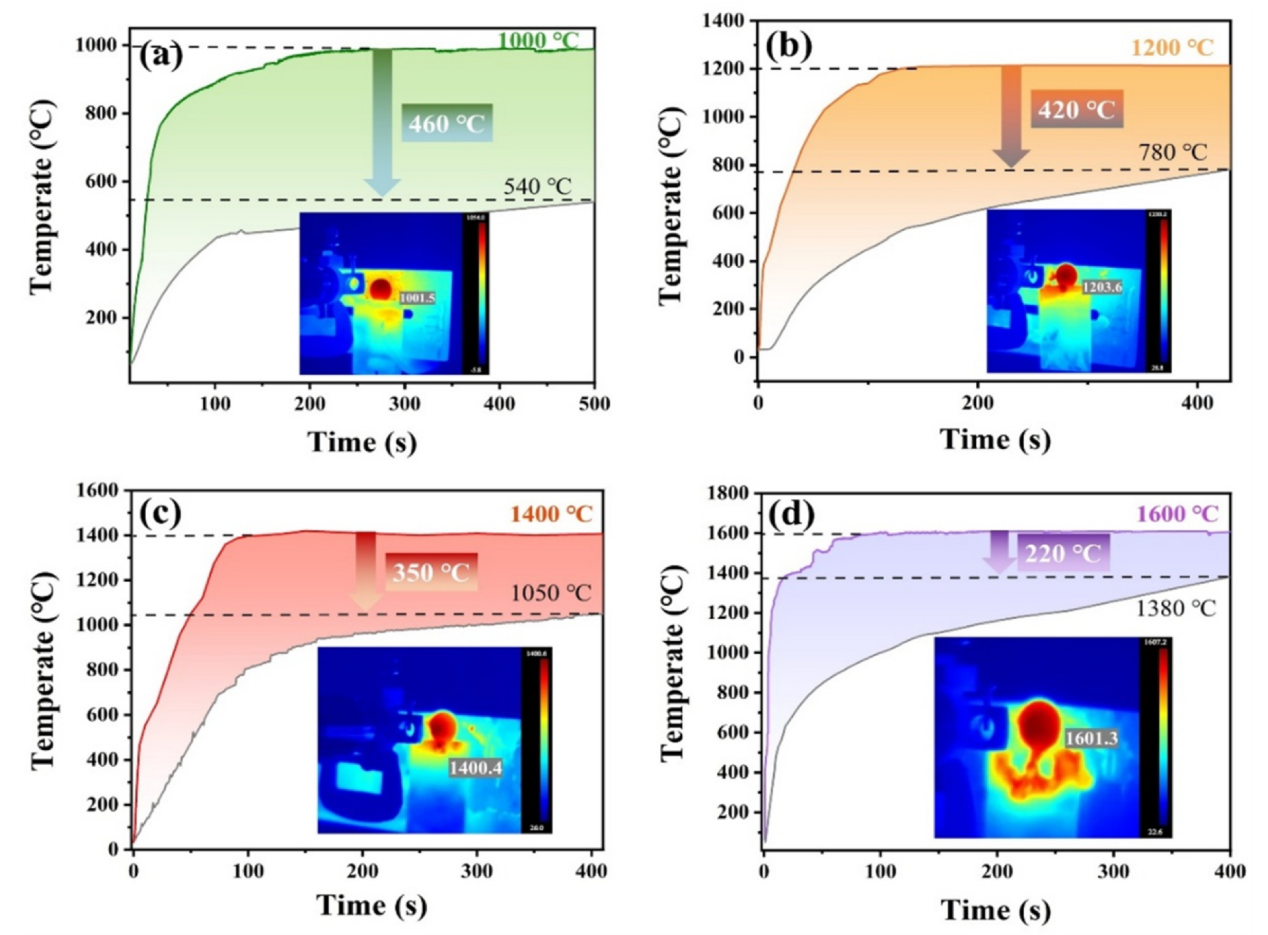

Thermal insulation performance is the most critical service indicator for TPCs [9]. Therefore, evaluating the thermal insulation performance of the HE-LKTO-3 coating under the four high-temperature thermal shock test conditions is crucial. During the thermal shock tests conducted using a high-temperature plasma jet, the surface and backside temperatures of the HE-LKTO-3 coating were monitored in real-time by an infrared thermography and thermocouples, respectively. The corresponding temperature curves are presented in Fig. 10. When the temperature difference between the front and back sides stabilized, a front surface temperature of 1000 ℃ resulted in a backside temperature of 540 ℃. Subsequently, the backside temperature reached to 780 ℃, 1050 ℃, and 1380 ℃ as the front surface temperature increased to 1200 ℃, 1400 ℃, and 1600 ℃, respectively. In other words, when the response temperature of the coating surface is 1000 ℃, 1200 ℃, 1400 ℃, and 1600 ℃, the corresponding insulation temperatures are 460 ℃, 420 ℃, 350 ℃, and 220 ℃, respectively. This data reveals a clear trend: as the temperature of the plasma flame impinging on the coating surface rises, the temperature differential across the HE-LKTO-3 sample progressively narrows. This change occurs because the intense and prolonged thermal and erosive forces induce surface melting and spallation of the coating. Such damage compromises the structural integrity of the coating and consequently degrades its thermal insulation performance. Liu et al. [47] prepared YSZ coating using APS technology, and found that the insulation temperature of the coating at 1200 ℃ was only 84 ℃, much lower than the insulation temperature of HE-LKTO-3 coating at the same temperature (420 ℃). Chen et al. [48] used APS technology to prepare two types of YSZ coatings (submicron structure and nanostructure), both of which have thermal insulation performance lower than 100 ℃ at an ambient temperature of 1200 ℃. Furthermore, YSZ coatings undergo a phase transformation at around 1200 ℃, which is accompanied by a volume expansion of 3 - 5 % [49]. In other words, the failure temperature of YSZ coatings is essentially 1200 ℃, whereas the failure temperature of the HE-LKTO-3 coating studied here reaches as high as 1600 ℃.

Fig. 11 displays SEM images of the cross-section of the HE-LKTO-3 coating after thermal shock testing. As shown in Fig. 11(a), after testing at 1400 ℃, the interfaces between the top coating, the bonding layer, and the substrate remain clear and well-bonded, with no obvious delamination observed. This result is consistent with the experimental finding that the coating maintains a high thermal insulation performance (with an insulation temperature drop of 350 ℃) at 1400 ℃, further confirming the significant potential of HE-LKTO as a novel high-entropy titanate TPC for high-temperature applications. This performance can be attributed primarily to the sluggish diffusion effects characteristic of high-entropy coatings, which impart properties such as sintering resistance [50] and low volumetric shrinkage [43]. These features help to release stress and allow pores to absorb crack-tip energy under thermal loading, thereby enhancing the coating's actual service life [6]. Additionally, the bonding layer, with its moderate thermal expansion coefficient (approximately 15 × 10⁻⁶ K⁻¹) [51] and excellent ductility, acts as a “stress buffer”, effectively dissipating localized stress concentrations at the interface between the top coating and the substrate, thereby delaying interfacial cracking. In contrast, when the test temperature was increased to 1600 ℃ (as shown in Fig. 11(b), (c)), distinct interfacial separation between the top coating and the bonding layer occurred, accompanied by crack propagation along the interface. This is due to the aggravated mismatch in the thermal expansion coefficients between the top coating and the substrate under extreme temperatures, leading to significant thermal stress at the interface. As reported by Zhang et al. [41], such a thermal expansion coefficient gradient across the coating system induces radial and axial thermal stresses during plasma flame thermal shock, with tensile stress at high temperatures (1200 - 1600 ℃) and compressive stress during cooling. With continued thermal shock, these stresses accumulate at the interface, initiating and propagating microcracks. Under prolonged thermal shock, the bonding layer further accelerates coating failure through the accumulation of interfacial stresses. Furthermore, the cross-sectional images (Fig. 11(c)) reveal cracks penetrating through the coating thickness, resulting from stress concentration induced by rapid heating and cooling during thermal shock. The lamellar structure (formed by the APS process) of the coating weakens at high temperatures due to grain growth and sintering effects, reducing interlayer bonding strength and further promoting crack propagation along the interlamellar boundaries, ultimately leading to coating spallation.

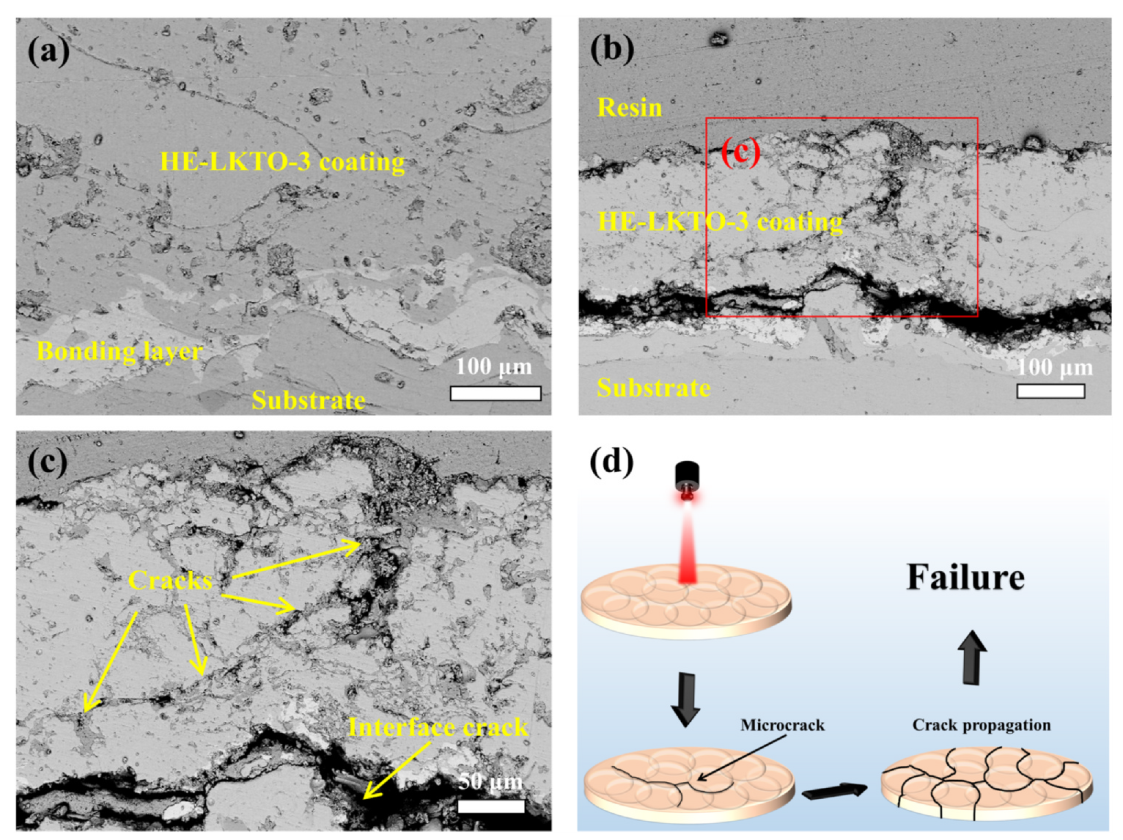

Based on the above observations, the microstructural evolution of the HE-LKTO-3 coating during thermal shock testing can be divided into three stages (Fig. 11(d)): (ⅰ) Initiation of microcracks at the interface between the top coating and bonding layer driven by thermal mismatch stress; (ⅱ) Propagation of cracks along the top coating/bonding layer interface as thermal shock continues. To effectively relieve interfacial stress and reduce the energy release rate at the crack tip, cracks penetrating the coating and secondary cracks are induced [52], leading to gradual weakening of the lamellar structure; (ⅲ) Further extension and interconnection of cracks, eventually causing separation between the top coating and the bonding layer and resulting in failure of the coating.
